最新EE磁芯 淘寶購買鏈接：1771.taobao.com/category-736421602.htm

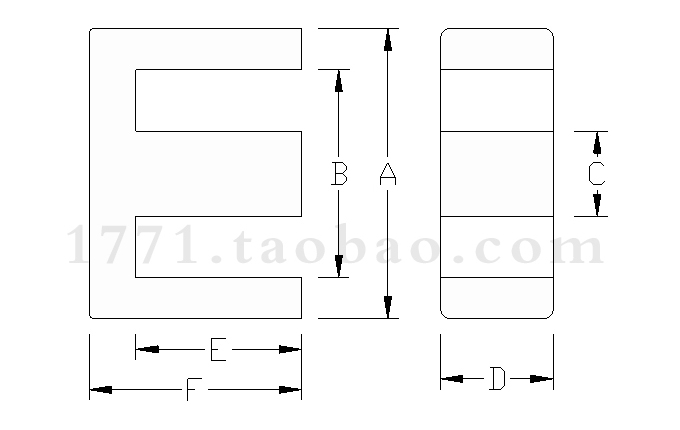

| 型號 | 毛重（g） | 尺寸(mm) | |||||
| A | Bmin | C | D | E | F | ||
| EE13/6/10 | 12.9±0.3 | 8.5 | 2.8±0.2 | 6.0±0.3 | 3.6±0.2 | 5.0±0.3 | |
| EE13/6/12 | 2.95 | 13.0±0.3 | 10.2±0.3 | 2.6±0.2 | 5.9±0.2 | 4.6±0.1 | 6.0±0.2 |
| EE13/10 | 6.6 | 13.2±0.3 | 10.0 min | 2.7±0.2 | 9.8±0.2 | 5.45±0.2 | 7.45±0.2 |
| EE15/12/10 | 6.2 | 15.3±0.3 | 12.2±0.3 | 3.4±0.2 | 12.0±0.2 | 3.2±0.15 | 4.9±0.15 |
| EE16/7/5 | 5 | 16.0±0.3 | 12.0±0.3 | 3.8±0.2 | 4.8±0.2 | 5.2±0.2 | 7.2±0.1 |
| EE16/8/5 | 6 | 16.1±0.6 | 11.3 | 4.55±0.2 | 4.5±0.2 | 5.9±0.2 | 8.0±0.2 |
| EEL16 | 6 | 16.8±0.3 | 12.5±0.3 | 4.0±0.2 | 4.9±0.2 | 10.5±0.2 | 12.5±0.2 |
| EE19 | 5.5 | 19.1±0.4 | 14.3 min | 4.5±0.2 | 4.85±0.2 | 5.8±0.2 | 8.15±0.2 |
| EE20 | 8.4 | 20.0±0.7 | 12.8 | 5.0±0.4 | 6.0±0.4 | 6.5±0.3 | 10.0±0.3 |
| EF20 | 8.8 | 20.15±0.7 | 14.1 | 5.7±0.3 | 5.65±0.3 | 7.0±0.3 | 10.0±0.25 |
| EF21 | 9 | 20.7±0.7 | 15.0 | 5.7±0.3 | 5.65±0.3 | 7.3±0.2 | 10.1±0.2 |
| EF21A | 8.8 | 21.6±0.7 | 15.5 | 5.7±0.3 | 5.7±0.3 | 7.5±0.25 | 10.3±0.25 |
| EE22 | 10 | 22.0±0.6 | 15.6 | 5.7±0.3 | 5.7±0.3 | 5.6±0.3 | 9.6±0.3 |
| EE22/22.4 | 11.7 | 22.0±0.6 | 15.6 | 5.7±0.3 | 5.7±0.3 | 7.5±0.3 | 11.2±0.3 |
| EEL22 | 13 | 22.0±0.4 | 15.5 | 5.7±0.3 | 5.7±0.3 | 11.0±0.2 | 15.0±0.2 |
| EF25/7.2 | 17.5 | 25.2±0.5 | 18.0 min | 7.25±0.3 | 7.2±0.3 | 9.1±0.3 | 12.6±0.3 |
| EF25/11 | 27.8 | 25.2±0.6 | 18.0 min | 7.25±0.3 | 10.75±0.3 | 9.1±0.3 | 12.6±0.3 |
| EE25高導鏡面 | 6.38±0.25 | 6.38±0.25 | |||||
| EE25 | 11 | 25.4±0.6 | 19.4±0.4 | 6.25±0.25 | 6.25±0.25 | 6.8±0.3 | 10.0±0.25 |
| EEL25 | 18 | 25.5±0.6 | 19.4±0.4 | 6.5±0.25 | 6.4±0.25 | 13.1±0.25 | 16.3±0.25 |
| EEL27 | 33 | 27.0±0.6 | 19.0 min | 7.8±0.25 | 10.5±0.3 | 11.5±0.25 | 15.5±0.25 |
| EE28 | 24 | 28.0±0.6 | 18.6 | 7.2±0.2 | 10.7±0.3 | 6.5±0.3 | 10.5±0.3 |
| EE28.5 | 23 | 28.8±0.6 | 21.1 | 7.2±0.2 | 10.4±0.2 | 6.5±0.3 | 10.5±0.3 |
| EE30/7 | 24 | 30.0±0.5 | 19.9±0.4 | 6.9±0.3 | 7.1±0.2 | 10.0±0.2 | 15.0±0.2 |
| EE30/11 | 37.3 | 30.0±0.5 | 19.5 min | 6.95±0.3 | 11.0±0.3 | 10.0±0.3 | 15.0±0.25 |
| EE32/9.5 | 36 | 32.1±0.5 | 22.7 | 9.5±0.3 | 9.5±0.2 | 11.5±0.3 | 16.4±0.2 |
| EE32/11 | 42 | 32.1±0.5 | 22.7 | 9.5±0.3 | 11.0±0.2 | 11.5±0.3 | 16.4±0.2 |
| EE32.6/37/9.5 | 40 | 32.6±0.5 | 23.6 | 9.5±0.3 | 9.5±0.2 | 14.3±0.3 | 18.6±0.3 |
| EE33 | 42 | 33.2±0.5 | 23.5 | 9.7±0.3 | 12.7±0.3 | 9.65±0.3 | 14.0±0.3 |
| EE35/18 | 45 | 35.0±0.6 | 24.6 | 10.0±0.3 | 10.0±0.3 | 12.5±0.3 | 17.5±0.3 |
| EE35/28 | 33 | 34.2±0.6 | 24 | 9.5±0.3 | 10.0±0.3 | 9.2±0.3 | 13.7±0.3 |
| EE40 | 62.4 | 40.4±0.7 | 27.5min | 11.7±0.3 | 11.7±0.3 | 10.5±0.3 | 17.3±0.3 |
| EE42/42/15 | 93 | 42.1±0.9 | 29.5 | 12.0±0.3 | 15.0±0.3 | 15.2±0.4 | 21.1±0.3 |
| EE42/42/20 | 121 | 42.1±0.9 | 29.5 | 12.0±0.3 | 19.7±0.4 | 15.2±0.4 | 21.1±0.3 |
| EE42/42/20 | 121 | 42.0±0.7 | 29.5 min | 12.2±0.3 | 19.7±0.4 | 15.3±0.3 | 21.3±0.3 |
| EE42/50/15 | 108 | 42.1±0.9 | 29.5 | 12.0±0.3 | 15.0±0.3 | 19.0±0.4 | 25.0±0.3 |
| EE50 | 120 | 50.0±0.7 | 34.2 | 14.6±0.4 | 14.6±0.4 | 13.1±0.3 | 21.5±0.3 |
| EE55A | 186 | 55.1±1.1 | 37.5 | 17.0±0.3 | 16.9±0.3 | 18.8±0.3 | 27.5±0.3 |
| EE55B | 230 | 55.1±1.1 | 37.5 | 17.0±0.3 | 20.7±0.4 | 18.8±0.3 | 27.5±0.3 |
| EE55C | 272 | 55.1±1.1 | 37.5 | 17.0±0.3 | 24.7±0.4 | 19.3±0.3 | 27.8±0.3 |
| EE56B | 240 | 56.0±1.0 | 38.8 min | 16.8±0.3 | 20.7±0.4 | 19.3±0.3 | 27.7±0.3 |
| EE59/57/25 | 300 | 59.0±1.5 | 41.5 | 16.9±0.3 | 24.7±0.4 | 20.0±0.3 | 28.5±0.3 |
| EE65A | 304 | 65.4±1.5 | 44.2 min | 19.7±0.4 | 19.7±0.4 | 23.0±0.3 | 32.8±0.3 |
| EE65B | 416 | 65.2±1.3 | 44.2 | 19.6±0.3 | 27.0±0.3 | 22.5±0.3 | 32.5±0.3 |
| EE66B | 419 | 66.2±1.3 | 45.0 min | 19.6±0.3 | 27.0±0.3 | 23.0±0.3 | 32.8±0.3 |
| EE70A | 412 | 70.5±1.5 | 48.0 min | 16.7±0.3 | 24.0±0.5 | 24.8±0.4 | 35.3±0.4 |
| EE70B | 530 | 70.7±1.5 | 48.0 | 21.5±0.5 | 30.5±0.6 | 22.5±0.6 | 33.2±0.4 |
| EE70/72 | 418 | 70.5±1.5 | 48.0 | 21.5±0.5 | 30.5±0.6 | 25.2±0.6 | 36.0±0.5 |
| EE80A/38/20 | 396 | 80.9±2.0 | 60 min | 20.0±0.5 | 20.0±0.6 | 28.0±0.5 | 38.0±0.5 |
| EE85A | 726 | 85.0±3.0 | 55.0 | 27.0±0.4 | 26.5±0.5 | 29.0±0.5 | 44.0±1.0 |
| EE85B | 860 | 85.3±2.0 | 58.0 min | 26.5±0.5 | 31.5±0.5 | 30.5±0.5 | 43.6±0.4 |
| EE100 | 1173 | 100.0+3.0/-1.5 | 72.0min | 28.0±0.5 | 28.0±0.5 | 46.0±0.5 | 60.0±0.5 |
| EE110 | 1700 | 110.0±1.0 | 75.0 min | 35.8±0.4 | 36.0±0.5 | 38.7±0.5 | 57.0±0.5 |
| EE118 | 2530 | 118.0±1.5 | 82.0 min | 35.0±0.5 | 35.0±1.0 | 69.0±0.5 | 86.5±0.5 |
| EE130 | 2410 | 130.0±0.5 | 90.5±1.0 | 39.0±1.0 | 40.0±1.0 | 45.0±0.5 | 65.0±0.5 |
| EE160 | 3400 | 160.0±3.0 | 120.0 | 40.0±2.0 | 20.0±1.5 | 64.0±1.0 | 83.0±1.0 |
| EE188 | 6880 | 185.0±3.5 | 128.0 | 55.5±2.5 | 55.0±2.0 | 49.0±1.5 | 79.0±1.5 |
| EE193 | 6880 | 193.0±3.5 | 132.0 | 58.0±2.0 | 59.0±2.0 | 49.0±1.5 | 79.0±1.5 |
| EE210 | 5620 | 210.0±3.5 | 149.0 | 58.0±2.0 | 40.0±1.0 | 65.0±1.5 | 95.0±1.5 |
| EE240 | 7000 | 240.0±4.0 | 176.0 | 60.0±1.0 | 40.0±0.5 | 87±1.0 | 118.0±1.0 |
